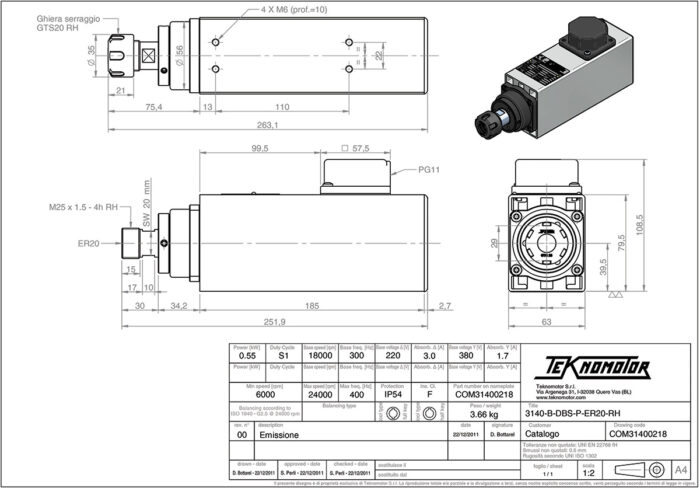

3140-B-DBS-P-ER20-RH
The electrospindle 3140 SERIES are designed to generate high power with a limited overall dimensions. These characteristics, combined with the high rotational speed, making them ideal for use on machines for working wood, aluminum and PVC. SERIES 3140: for a 12,000 rpm to 24,000 rpm when the load is radial and axial.
Technical Characteristics
Tool Holder |
ER20 |
Power |
0.29 kW |
Duty Cycle |
S1 |
Torque |
0.29 Nm |
Normal Speed |
18000 RPM |
Max Speed |
24000 RPM |
Voltage |
220 V, 380 V |
Weight |
3.66 kg |
Order Code |
COM31400218 |
