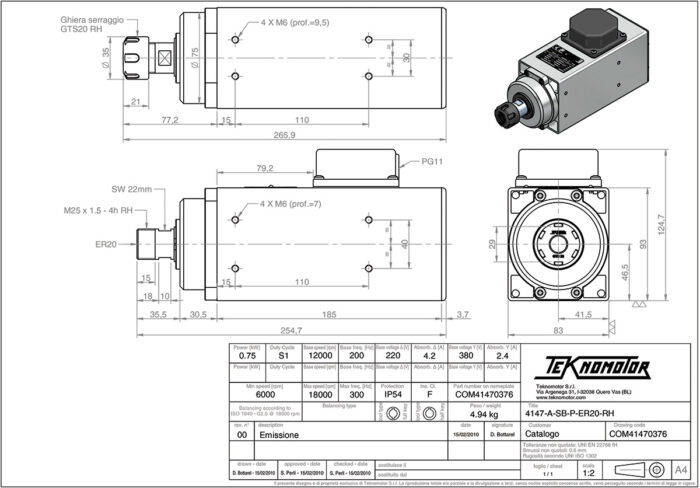

4147-A-SB-P-ER20-RH
The electrospindle 4147 SERIES are designed to generate high power with a limited overall dimensions. These characteristics, combined with the high rotational speed, making them ideal for use on machines for working wood, aluminum and PVC. 4147 SERIES: for a 12,000 rpm to 24,000 rpm when the load is radial and axial.
Technical Characteristics
Tool Holder | ER20 |
Power | 0.75 kW |
Duty Cycle | S1 |
Torque | 0.60 Nm |
Normal Speed | 12000 RPM |
Max Speed | 18000 RPM |
Voltage | 220 V, 380 V |
Weight | 4.94 kg |
Order Code | COM41470376 |
